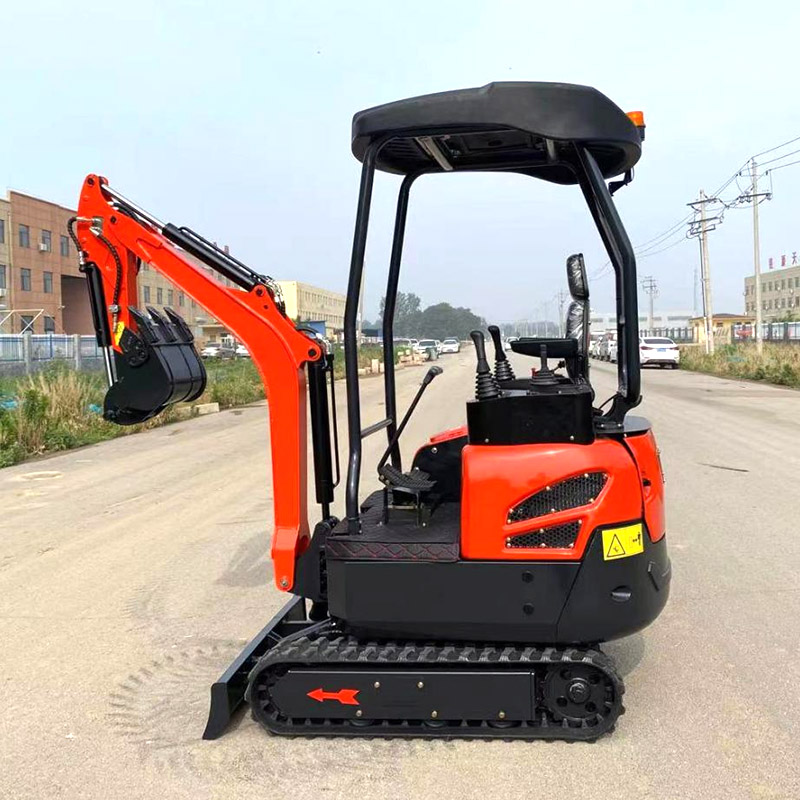

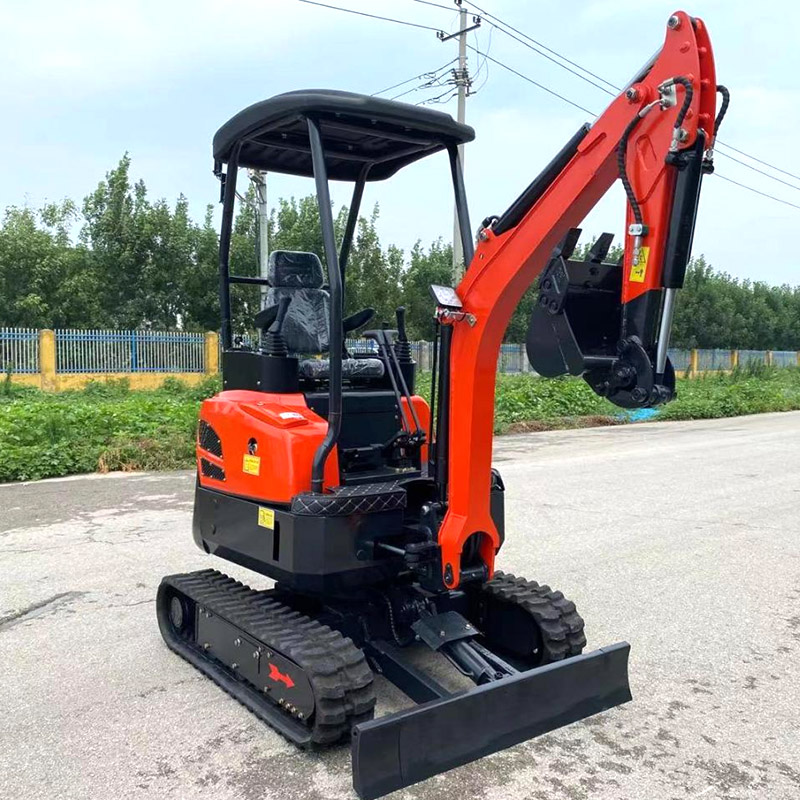

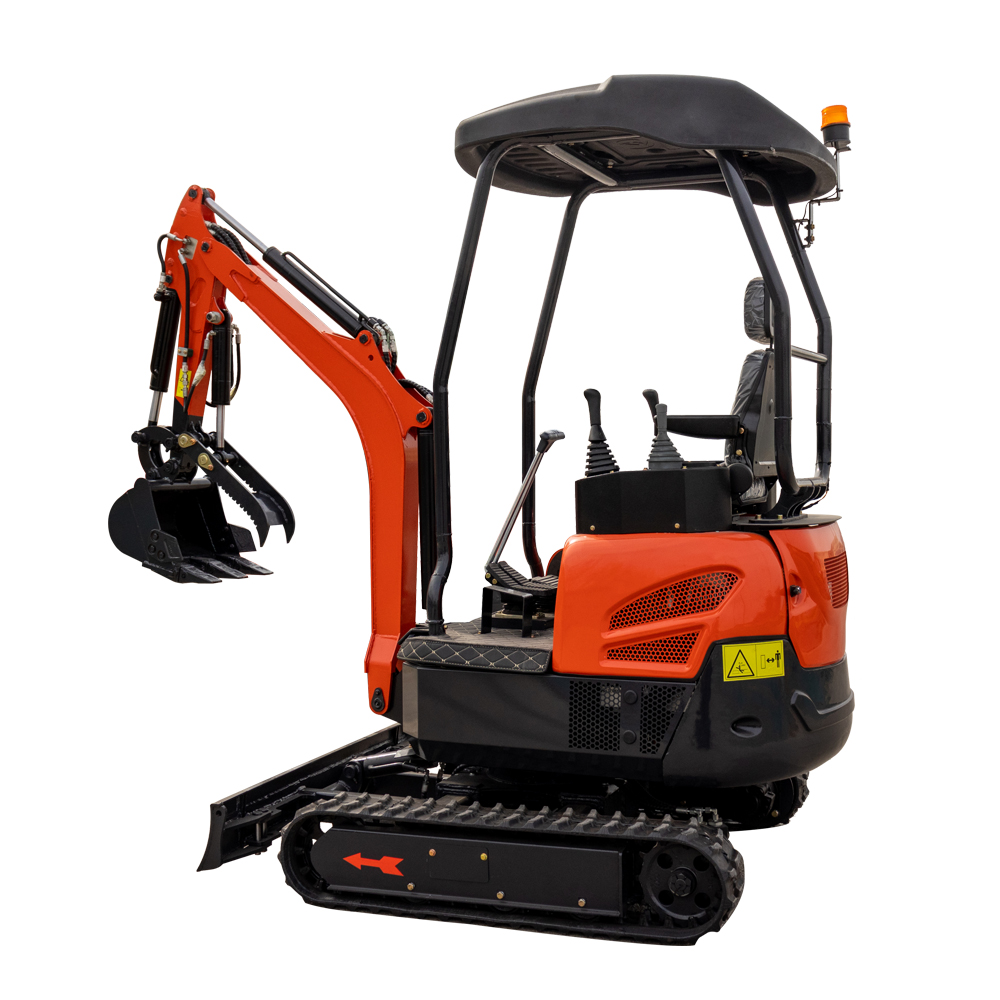

HT18 Mini Excavator Yanmar engine, Double speed, Retractable shoes,Boom swing, Tailless rotation
ENGINE |
|
Emission Standard |
Tier 5/ Stage V |
Make |
Laidong/ Kubota |
Model |
385/ D722 |
Power /Rotation speed |
18.2KW/10.2kw14HP)2500rpm |
Number of cylinder |
3 |
TRACK SYSTEM |
|
Maximum Travel speed |
4km/h |
Width of track shoe |
230mm |
Number of track shoe per side |
38pcs |
Number of upper roller per side |
1 |
Number of bottom roller per side |
3 |
PERFORMANCE PARAMETER |
|
Standard Bucket capacity |
0.03m³ |
Swing speed |
9 rpm |
Max. Grade ability |
35° |
Maximum Bucket digging force |
18KN |
Maximum Arm digging force |
11KN |
Hydraulic system pressure |
18.2Mpa |
Machine weight |
1650kg |
MACHINE SIZE |
|
Overall dimension (L*W*H) |
2550*1100/1400*2310mm |
Wheel base |
1100mm |
Chassis width |
1100mm |
Axle base(Track length on ground) |
1300mm |
Track width |
180mm |
Min.Ground clearance |
380mm |
WORKING RANGE |
|
Maximum Digging height |
27400mm |
Maximum Dumping height |
2100mm |
Maximum Digging depth |
2150mm |
Maximum Vertical digging depth |
2320mm |
Maximum Digging radius |
2400mm |
Minimum swing radius |
1190mm |
Maximum Lifting height of blade |
325mm |
Maximum Cutting depth of blade |
175mm |
Boom swing angle(Left) |
75° |
Boom swing angle(Right) |
45° |
