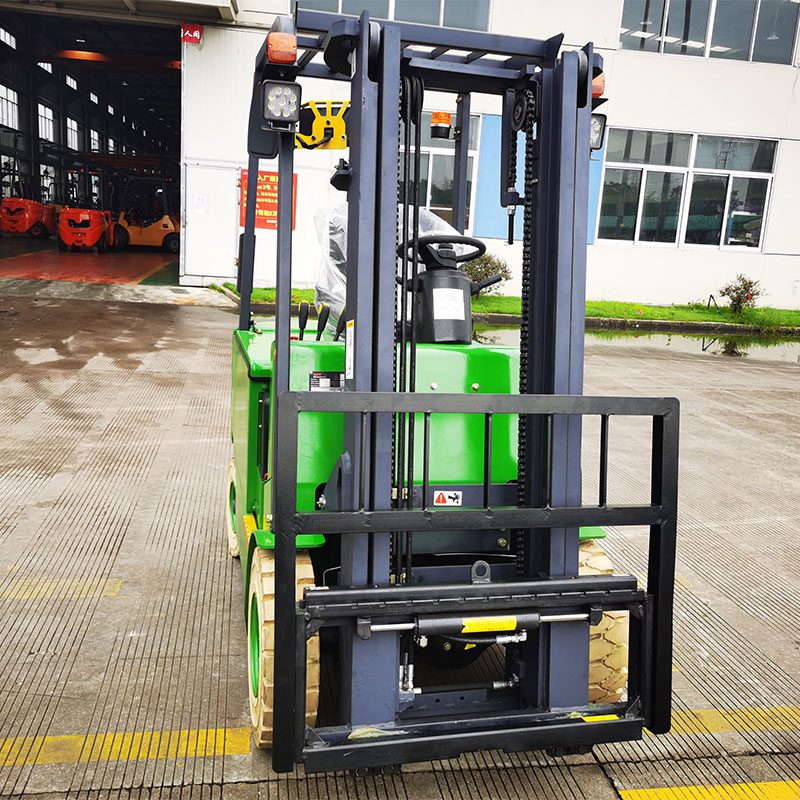

HT1.5ton -1.8ton electric forklift
|
HT1.5-1.8 ton electric forklift |
||
|
Model |
HT15 |
HT18 |
|
Rated capacity |
1500kg |
1800kg |
|
Load center |
450mm |
450mm |
|
Lift height |
3000mm |
3000mm |
|
Free lift height |
50mm |
50mm |
|
Fork size(L*W*T) |
920*100*35mm |
920*100*35mm |
|
Fork outside spread(Min./Max.) |
200/980mm |
200/980mm |
|
Mast tilt range(F/R) |
6112deg |
6112deg |
|
Front overhang |
548mm |
548mm |
|
without of fork |
2150mm |
2200mm |
|
with fork |
3070mm |
3120mm |
|
wheel width |
1120mm |
1112deg |
|
Mast lowered height |
2025mm |
2025mm |
|
Mast extended height |
3960mm |
3960mm |
|
Overhead guard height |
2150mm |
2150mm |
|
Turning radius |
1960mm |
2120mm |
|
Min. right angle aisle width |
1580mm |
1590mm |
|
Travel speed (unload/full load) |
16/14km/h |
16/14km/h |
|
Lift speed (unload/ full load) |
3701320mm/s |
370/320mm/s |
|
Self weight |
2250kg |
2450kg |
|
Max. gradeability |
15° |
15° |
