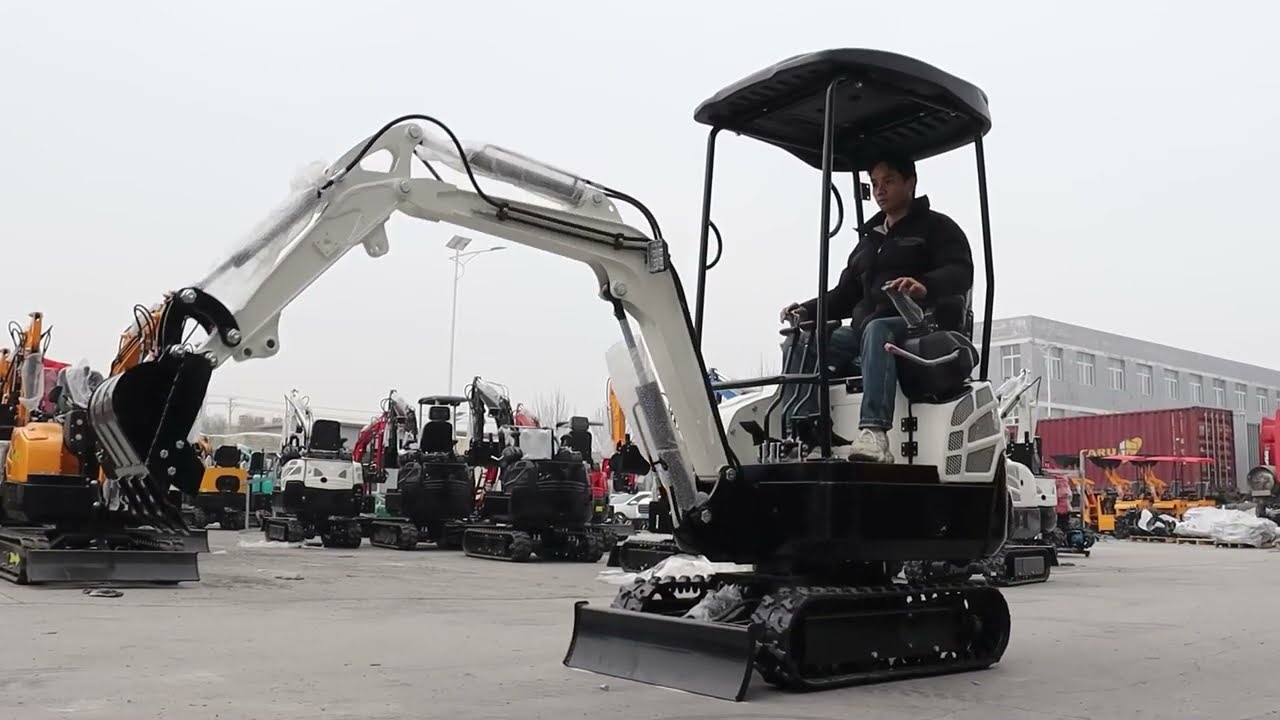

HT15Pro 1.5 Ton Mini Excavator – Tight Turns for Narrow Site
HT15Pro mini excavator is designed for narrow access jobs with a 930mm compact width and flexible operation.
• 1500mm minimum turning radius – pivots in tight spots where wider machines cannot operate.
• 1710mm digging depth – suitable for trenches, footings, drainage and site preparation.
• 2690mm maximum digging height – reaches the sides of most dump trucks and trailers.
• 930mm narrow body – passes through standard gates and works in confined spaces.
Turns Tighter Than You’d Expect from 1500kg
Most operators assume a heavier machine means a wider turning circle. The HT15pro breaks that rule. At 1000kg, it’s stable and planted on slopes, yet it pivots on a 1500mm radius – tighter than many lighter 1-ton machines. That’s the combination you don’t often find: enough weight for real digging power, but agile enough for narrow residential sites.
High Reach Without the Tip Risk
Lifting a full bucket to 2690mm puts a lot of leverage on the machine. The HT15pro’s 1000kg operating weight and 380mm ground clearance keep it stable when you’re reaching high or digging deep. The 30° gradeability means you can work on slopes without feeling like the machine is going to tip.
Work All Day Without Fighting the Controls
The joystick layout is intuitive – no awkward reaching, no second-guessing which lever does what. The hydraulic system responds smoothly, so you can make precise movements around existing pipes, foundations, and landscaping features without jerking or overshooting. Less fatigue means better work quality at the end of a shift.
Built to Handle Multiple Attachments
The HT15pro’s hydraulic system delivers consistent flow for buckets, breakers, augers, and grapples. Switching attachments takes minutes, not hours. That means you’re not renting different machines for different jobs – one machine, multiple tools, more work done.
HT15PRO Mini Excavator – Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Dimensions (mm) | |
| Transport Length (A) | 2300 mm |
| Overall Width (B) | 930 mm |
| Upper Width (D) | 990 mm |
| Overall Height (C) | 2270 mm |
| Standard Track Shoe Width (F) | 180 mm |
| Track Gauge (E) | 750 mm |
| Shovel Height Above Ground (G) | 110 mm |
| Depth of Excavation of Bulldozer (H) | 200 mm |
| Tail Turning Radius (I) | 800 mm |
| Track Ground Length (J) | 890 mm |
| Track Length (K) | 1235 mm |
| Working Range (mm) | |
| Max. Digging Height (a) | 2690 mm |
| Max. Dumping Height (b) | 1825 mm |
| Max. Digging Depth (c) | 1710 mm |
| Max. Digging Reach (d) | 2920 mm |
| Min. Swing Radius (e) | 1500 mm |
| Max. Height at Min. Swing Radius (f) | 2110 mm |
| Performance | |
| Working Weight | 1000 kg |
| Bucket Capacity | 0.02 m³ |
| Working Device Form | Backhoe |
| Gradeability | 30° |
| Main Components | |
| Engine | Koop / Briggs & Stratton |
| Main Valve | Tengfei |
What's the minimum turning radius of the HT15pro?
The HT15pro has a minimum turning radius of 1500mm – tighter than most 1.5-ton excavators, which typically range from 1600-1700mm. That extra maneuverability makes a real difference on tight residential sites, orchards, and indoor demolition work.
What engines are available for the HT15pro?
The HT15pro is available with KOOP diesel (10.2kW) as standard, or Briggs & Stratton gas as an option. Choose diesel for fuel efficiency and daily use, or gas for quieter operation on residential and noise-sensitive job sites.
How wide is the HT15pro? Will it fit through a gate?
The machine is 930mm wide overall, with an upper width of 990mm. It fits through most standard equipment gates. For residential pedestrian gates (typically 80-90cm), measure your access point first – this machine is wider than 1-ton models.
Can I tow the HT15pro with a pickup truck?
At 1500kg operating weight, the HT15pro is heavier than 1-ton machines but still tows behind a standard pickup on a small trailer. Check your trailer's weight rating and local towing regulations before transport.
What attachments can I use with the HT15pro?
The HT15pro accepts standard mini excavator attachments – digging buckets, hydraulic breakers, augers, grading blades, and grapples. Quick-hitch systems are available for fast attachment swaps.
How does the HT15pro compare to the standard HT15?
The HT15pro features a 1500mm minimum turning radius – 100-200mm tighter than the standard HT15. It also offers a 2690mm digging height (vs 2640mm) and improved stability with 1500kg operating weight. The pro model is built for precision work in confined spaces
