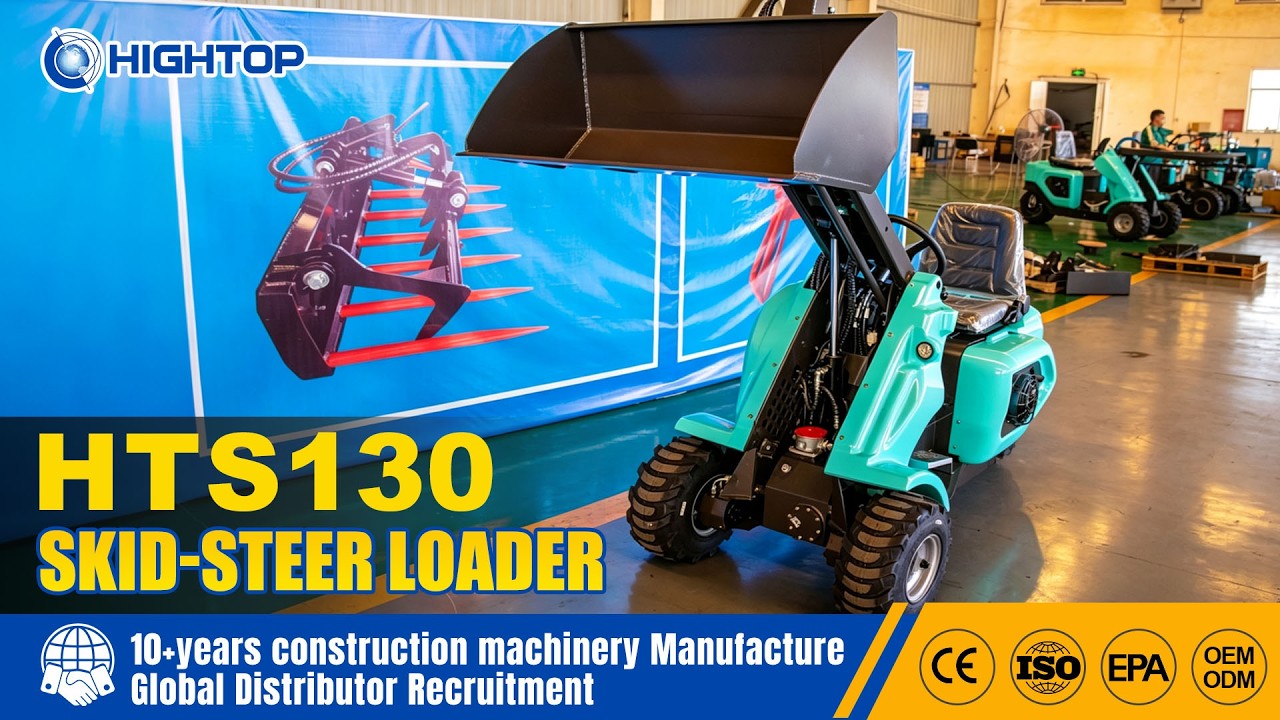

HTS130Pro Mini Loader for Compact Material Handling
HTS130Pro is a compact three-wheel hydraulic loader with a 420cc gasoline engine, 275kg maximum load capacity and 0.1m³ bucket, designed for material handling in construction, landscaping, agriculture and rental applications.
The HTS130Pro mini loader is a compact three-wheel hydraulic loader designed for material handling where working space is limited. With a vehicle width of 978 mm and height of 1290 mm, the machine is suited to narrow working environments while maintaining practical loading capability. If you are comparing different compact equipment solutions, explore our Mini Loader range.
Powered by a Zongshen 420 gasoline engine with 420cc displacement, the HTS130Pro delivers a maximum engine output of 6.8 kW at 3600 rpm. Its hydraulic transmission and hydraulic working system are designed for smooth power transmission and convenient daily operation.
For material handling, the loader has a 275 kg maximum load capacity and a 0.1 m³ bucket capacity. The maximum working height is 2272 mm, while the maximum dumping height reaches 1255 mm, providing practical loading performance for construction, landscaping and agricultural work.
The compact chassis measures 1837 mm in length and 978 mm in width, with an inner-outer turning radius of 990 mm. A maximum driving speed of 0–8 km/h and a steering angle of 0–360° support flexible movement around different work areas.
The HTS130Pro is also designed for multiple applications. Compatible attachments shown for the model include a trencher, brush cutter, concrete mixer, lawn mower, wood chipper, sweeper, breaker hammer, grapple, backhoe digger, snow blade, fork, stump grinder, log crusher, tiller, auger, drills, mixer, leveler and 4-in-1 bucket. Buyers can contact Hightop to discuss available attachment configurations.
For distributors, contractors and rental businesses, Hightop also provides OEM and ODM customization. Available customization shown in the product information includes machine body colors, custom logo printing, brand stickers and decals, and customized appearance design. Low MOQ support, bulk order cooperation, dealer partnership and long-term supply relationships are also available. For distributors looking for customized equipment, learn more about our OEM & ODM Services.
If you are sourcing a compact mini loader for material handling, landscaping, agricultural work or rental applications, contact Hightop for the HTS130Pro configuration, attachment options, quotation and export support.
| Specification | HTS130Pro | Specification | HTS130Pro |
|---|---|---|---|
| Model | HTS130Pro | Inner-outer turning radius | 990 mm |
| Engine model | Zongshen 420 | Gas tank capacity | 10 L |
| Fuel type | Gasoline | Hydraulic tank capacity | 10 L |
| Cylinder | 1 | Working pressure flow rate | 28 L/min |
| Displacement | 420 cc | Hydraulic working pressure | 16 MPa |
| Emission standards | Euro 5 | Transmission type | Hydraulic |
| Maximum engine output power | 6.8 kW / 3600 rpm | Maximum working height | 2272 mm |
| Maximum engine torque | 25 Nm / 2500 rpm | Maximum dumping height | 1255 mm |
| Cooling system | Air | Vehicle height | 1290 mm |
| Working voltage | 12 V | Maximum height of connection plate | 1787 mm |
| Battery | 24 Ah | Wheelbase | 1370 mm |
| Weight | 420 kg | Vehicle length excluding standard bucket | 1837 mm |
| Maximum load capacity | 275 kg | Vehicle width | 978 mm |
| Driver’s seat | Yes | Inclination angle | 40° |
| Driving speed | 0–8 km/h | Maximum dump inclination angle | 18° |
| Steering angle | 0–360° | Bucket capacity | 0.1 m³ |
Standard Tire Configuration
The HTS130Pro comes with inflatable engineering tires as the standard tire configuration, providing a practical setup for routine loader operation.
Optional Grass Tires
Grass tires are available as an optional configuration according to customer requirements. Buyers can contact Hightop to confirm the available tire configuration for their application.
What type of machine is the HTS130Pro?
The HTS130Pro is a compact three-wheel hydraulic loader designed for material handling applications. It can be used in construction, landscaping, agricultural and small business or rental applications.
Where is the HTS130Pro mini loader suitable for use?
The HTS130Pro is suitable for construction sites, landscaping projects, agricultural material handling, small businesses and rental applications. Its compact dimensions are particularly useful when working space is limited.
What engine does the HTS130Pro use?
The HTS130Pro is equipped with a Zongshen 420 gasoline engine with a 420cc displacement. The product information specifies a maximum engine output of 6.8 kW at 3600 rpm.
Can the HTS130Pro be equipped with different attachments?
Yes. The product information shows a range of attachment options, including a trencher, brush cutter, concrete mixer, lawn mower, wood chipper, sweeper, breaker hammer, grapple, fork, auger, tiller and 4-in-1 bucket. Buyers should contact Hightop to confirm the attachment required for their application.Explore more options in our Loader Attachments range.
Can I customize the HTS130Pro for my local market?
Yes. Hightop provides OEM and ODM customization for the HTS130Pro. The available customization shown in the product information includes machine body colors, custom logo printing, brand stickers and decals, and customized appearance design.
Does Hightop support bulk orders and dealer cooperation?
Yes. The product information states that Hightop supports low MOQ, bulk order cooperation, dealer partnerships and long-term supply relationships. These options can be discussed according to the buyer's business requirements.
Is the HTS130Pro suitable for rental businesses?
The product information specifically presents the HTS130Pro as suitable for small businesses and the rental market. Its compact loader configuration and range of attachment options can support different material handling and maintenance applications.
How can I choose the right HTS130Pro configuration?
The appropriate configuration depends on the intended application, required attachments, tire requirements and purchasing model. For distributors, rental companies and contractors, Hightop can discuss the required configuration before quotation.
