HT380 Mini Wheel Skid Steer Loader

The skid steer loaders, multi-functional engineering vehicles, multi-purpose engineering machine.

HT380 Mini Wheel Skid Steer Loader Description

Description of HT380 Mini Wheel Skid Steer Loader

The skid steer loaders, multi-functional engineering vehicles, multi-purpose engineering machine. Achieved a special chassis vehicle steering wheel equipment, wheel running gear, all-wheel drive, skid steer, random job site can be quickly replaced or mount devices using a variety of work on both sides of the wheel speed difference, to adapt to different working environment and job content.

· Ergonomically designed, operating safety

· Quick hitch system

· Balance weight platform optional

· Higher lifting height than similar products

· Stand on or walk behind

· Double hand grip

Feature:

1. Folding pedal designed, driver can stand up the pedal or walk behind to operate machine.

2. Clear instrument panel sign, operating conveniently.

3. Joystick handle optional, operating more comfortable.

4. International warranty engine, enjoy local 3 years free engine maintenance.

5. It is a easier maintenance machinery,upper cover and back guard plate can be easily opened and dismounted ,you also can easily discharge the wasted egine oil outside the body, replace the spare parts easily ,like filte,engine oil, oi filter, spark plug and so on.

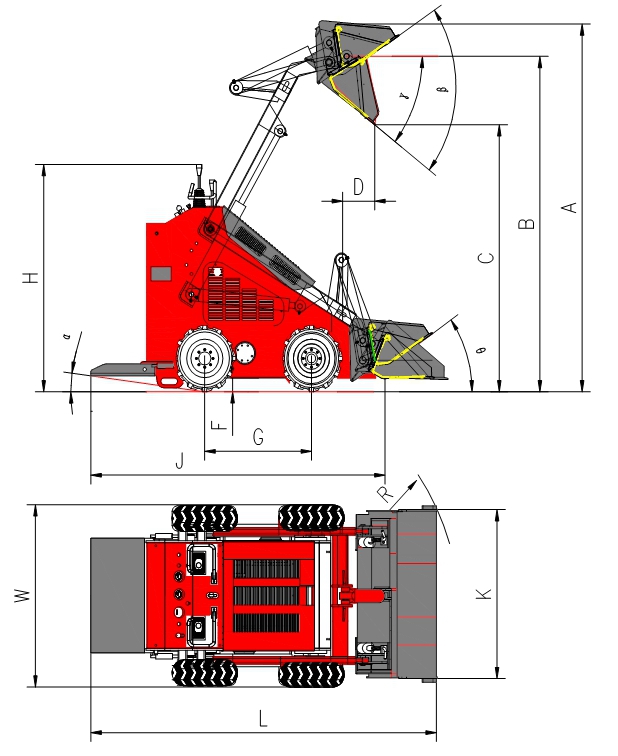

Main performance parameter of HT380 Mini Skid Steer Loader :



Item

Metric

  Inch

Max working heightA

2115 mm

83.3 inch

Max pin height B

1856 mm

73.1 inch

Max dump heightC

1460 mm

57.5 inch

The highest point discharge distanceD

388 mm

15.3 inch

Bucket swing angleβ

55°

55°

Bucket unloading angleγ

30°

30°

Angle of departureα

Total height H

1205 mm

47.4 inch

The height from the groundF

90 mm

3.5 inch

Wheelbase G

636 mm

25.0 inch

No bucket lengthJ

1752 mm

69.0 inch

Total width W

1033 mm

40.7 inch

Bucket width K

980 mm

38.6 inch

Total lengthL)(with bucket

2206 mm

86.9 inch

Turning radius (R)

1307 mm

51.5 inch





Main  performance parameters:

Engine

Rated power

21HP/23HP

Rotating speedrpm

3600

NoiseDb

≤95

Hydraulic System

Hydraulic pressureMpa

17

Cycle times

 Raise

Dump

Lower

4.27

1.34

3.31

     Performance parameters



Metric

inch

 Load  weight (kg)

200 Kg

441 Lb

Bucket capacity

0.15 m3

5.33 ft3

Max lifting power

375 Kg

827 Lb

speed

0-5.5 Km/h

0-3.4 mlie/h

Operating weight



890kg





1958lb



Tire type

Chevron  tire

18*6.5-8
