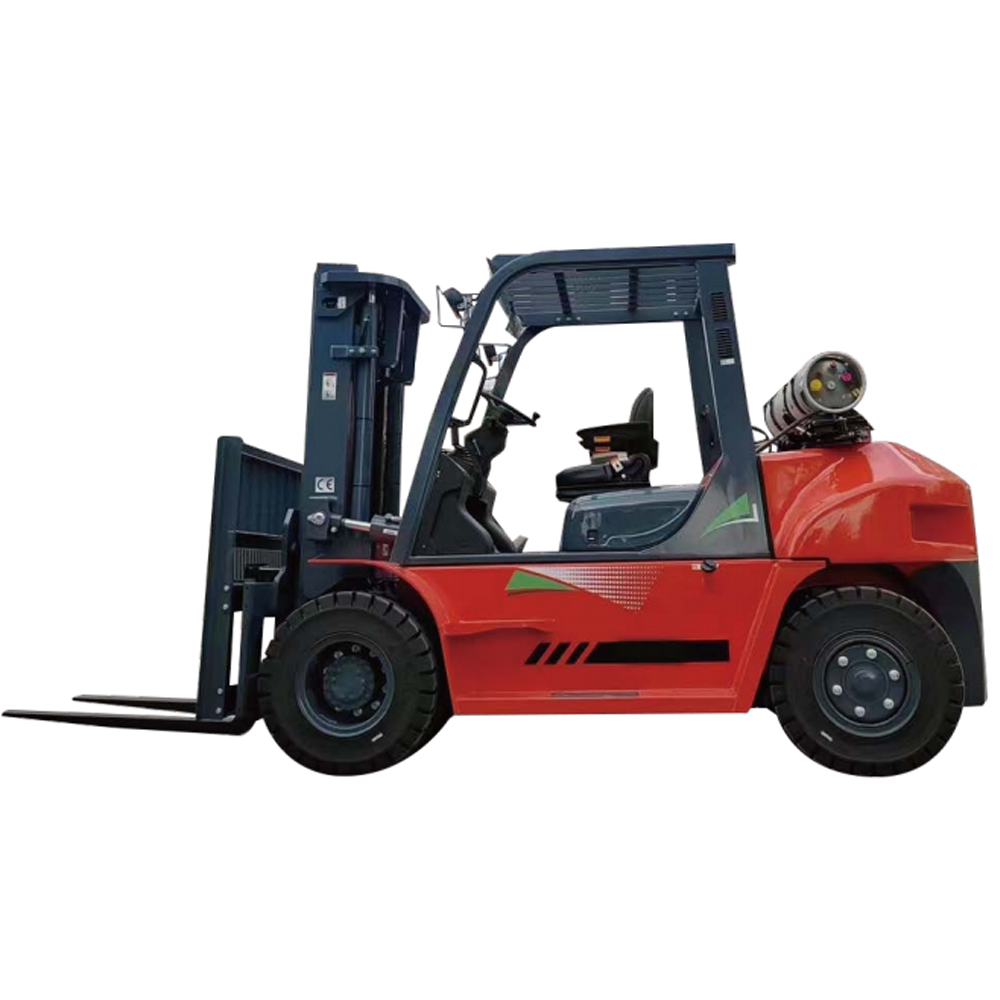

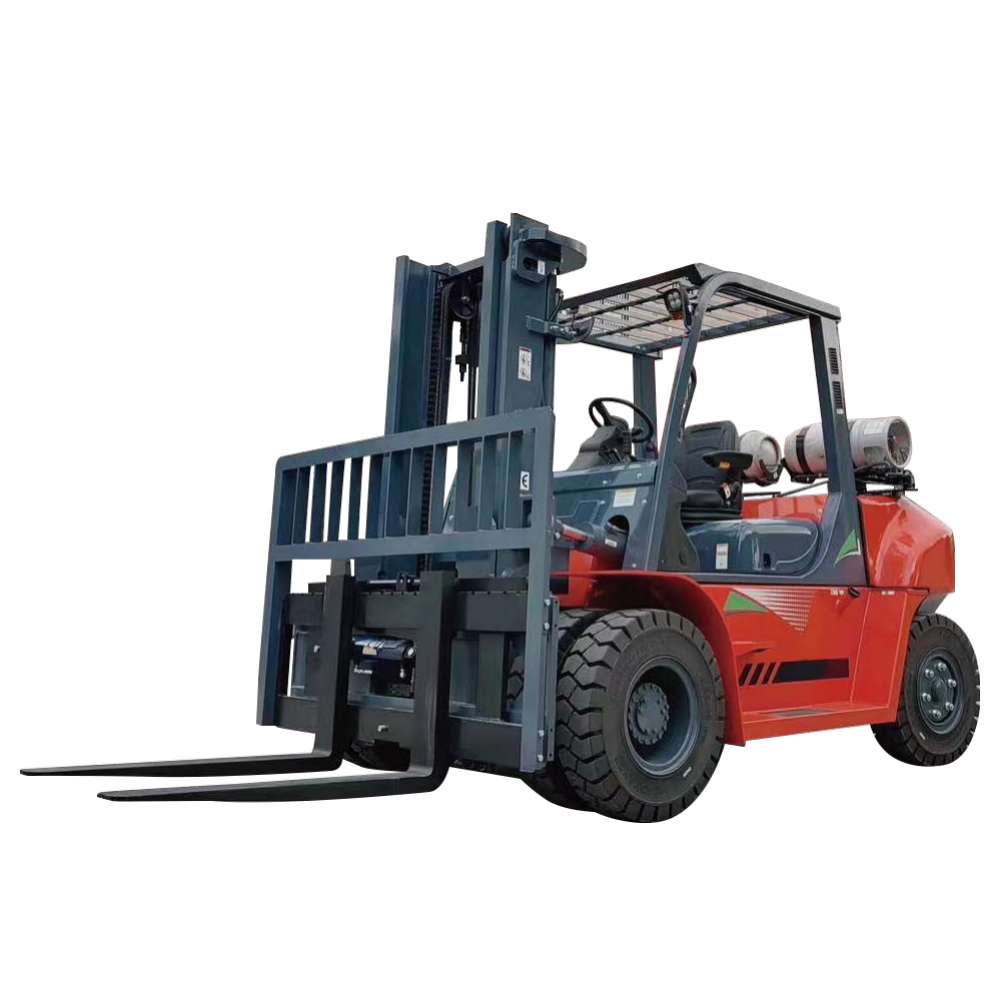

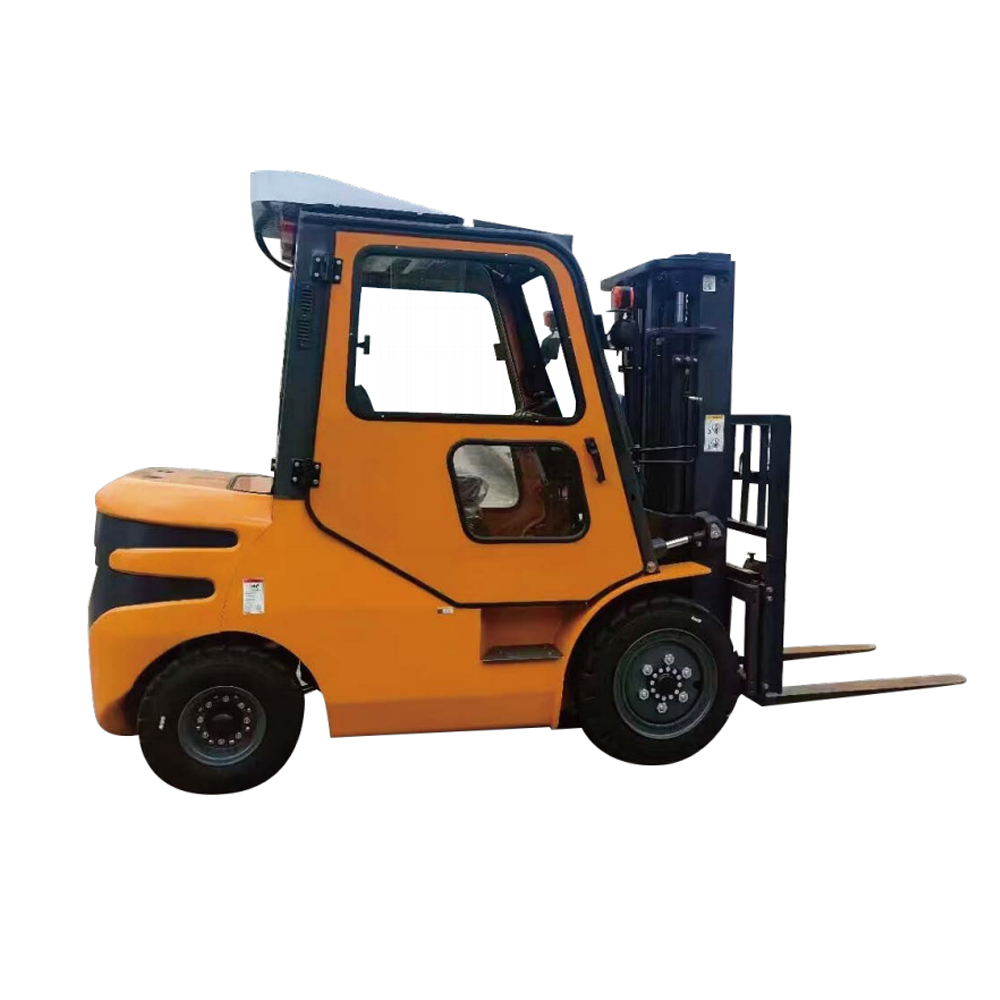

HT-30 Dual Fuel Forklift Truck
| Generals | Model | UNIT | HT30 | ||
| Power type | Diesel/ Gasoline/LPG | ||||
| Rated capacity | kg | 3000 | |||
| Load center | mm | 500 | |||
| Dimensions | Lift height | mm | 3000 | ||
| Free lift height | mm | 130 | |||
| Fork size(L*W*T) | mm | 1070×125×45 | |||
| Fork outside spread(Min./Max.) | mm | 300/1200 | |||
| Mast tilt range(F/R) | deg | 6/12 | |||
| Front overhang | mm | 490 | |||
| Overall dimensions | Length to face of fork | Without of fork | mm | 2680 | |
| With fork | mm | 3750 | |||
| Wheel width | mm | 1225 | |||
| Mast lowered height | mm | 2095 | |||
| Mast extended height | mm | 4180 | |||
| Overhead guard height | mm | 2130 | |||
| Turning radius | mm | 2460 | |||
| Min. right angle aisle width | mm | 2105 | |||
| Performance | Travel speed (unload/full load) | km/h | 20/18.5 | ||
| Lift speed (unload/ full load) | mm/s | 480 | |||
| Self weight | kg | 4250 | |||
| Max. gradeability | % | 20 | |||
| Wheel & Tires Drive units | Tires | Front | 28×9-15-12PR | ||
| Rear | 6.50-10-10PR | ||||
| Tread | Front | mm | 1000 | ||
| Rear | mm | 970 | |||
| Wheelbase | mm | 1700 | |||
| Min. ground clearance （unload/ full load） | Mast | mm | 152/132 | ||
| Frame | mm | 158/138 | |||
| Battery | v/ah | 12/90 | |||
| Engine | Model | 4D27G31 | |||
| Rated output | kw/r.p.m | 36.8/2500 | |||
| Rated torque | n.m/r.p.m | 156/1700-1900 | |||
| Displacement | cc | 2670 | |||
| No. of cylinder | 4 | ||||
| Borestroke | mm | 90×105 | |||
| Transmission | Model | Hydraulic | |||
| Shift (FWD/RVS) | 1/1 | ||||
| Operating pressure | mpa | 17.5 | |||
