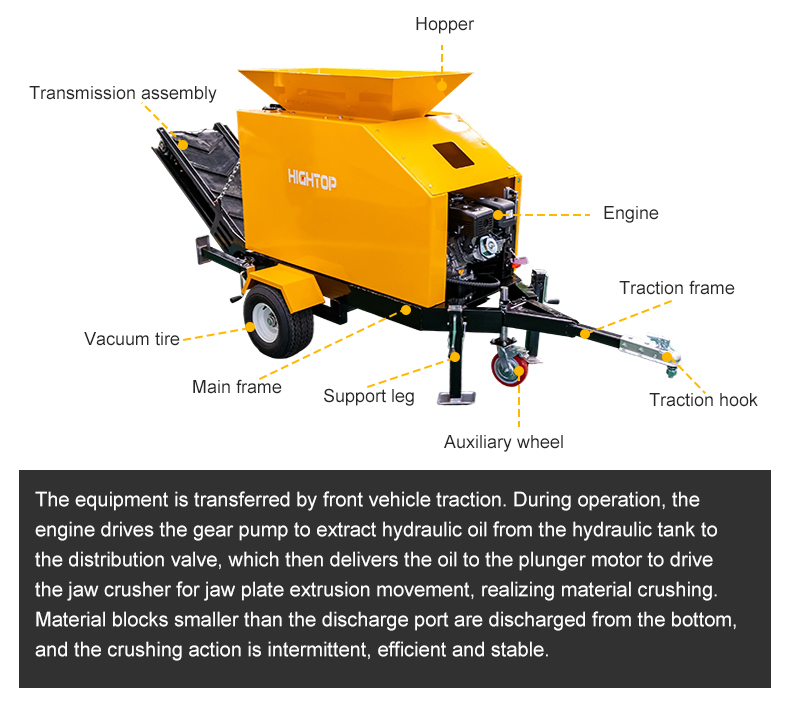

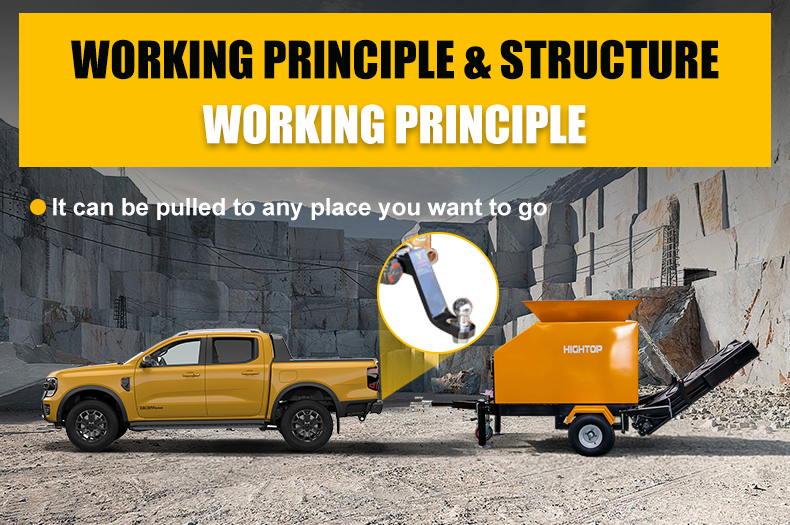

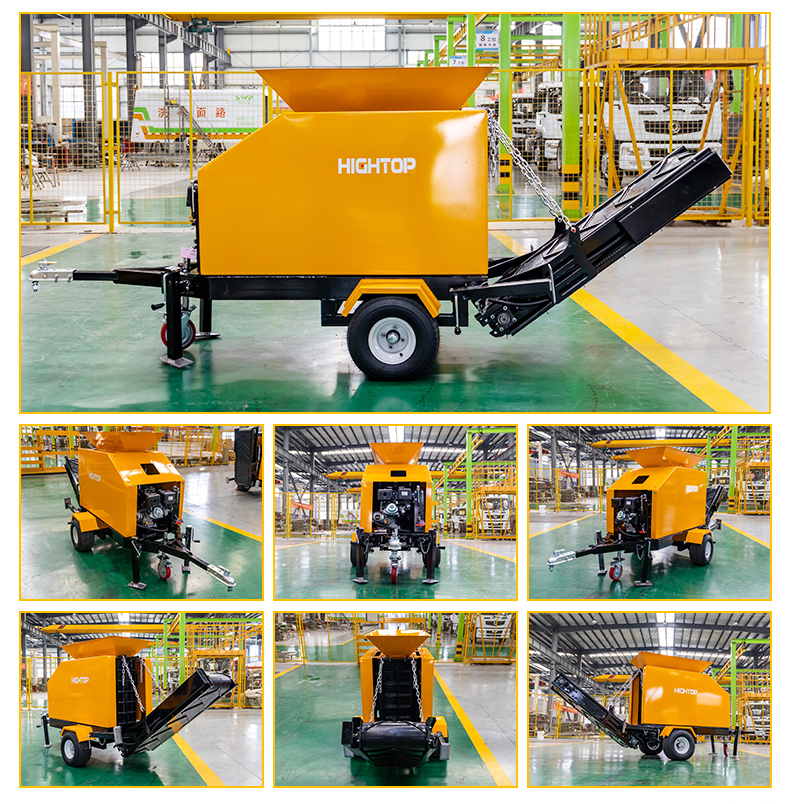

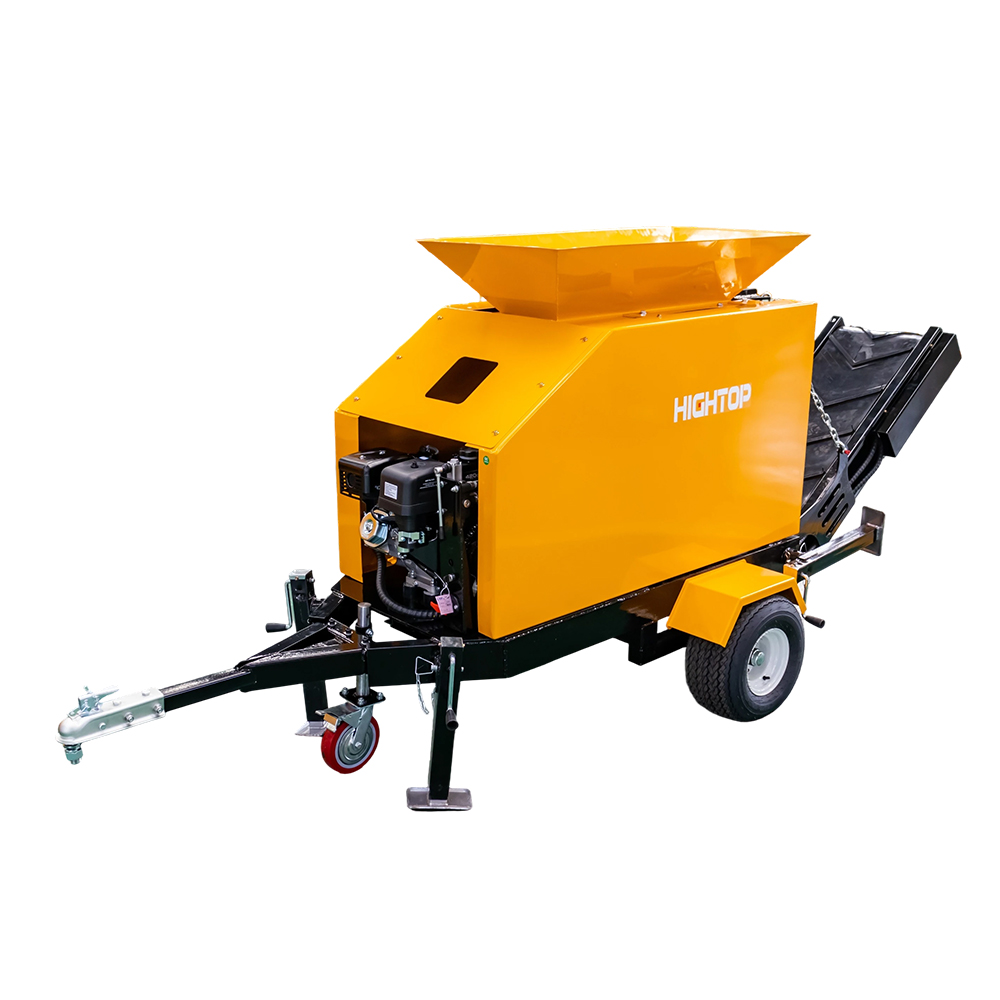

HTJC135 Trailer-Mounted Jaw Crusher adopts classic jaw crushing principle.realizing primary and secondary crushing of various hardness materials throughthe extrusion and bending action of fixed and movable jaw plates. Integratingpower and flexibility, the equipment is equipped with a Dajiang EPA-certifiedengine and a tire-mounted trailer structure, which can be quickly transferred byfront vehicle traction. lt is widely used in mineral processing, building decorationmaterial processing, ceramic raw material treatment and other industrial scenari-os, making it an ideal choice for small and medium-sized crushing operations.

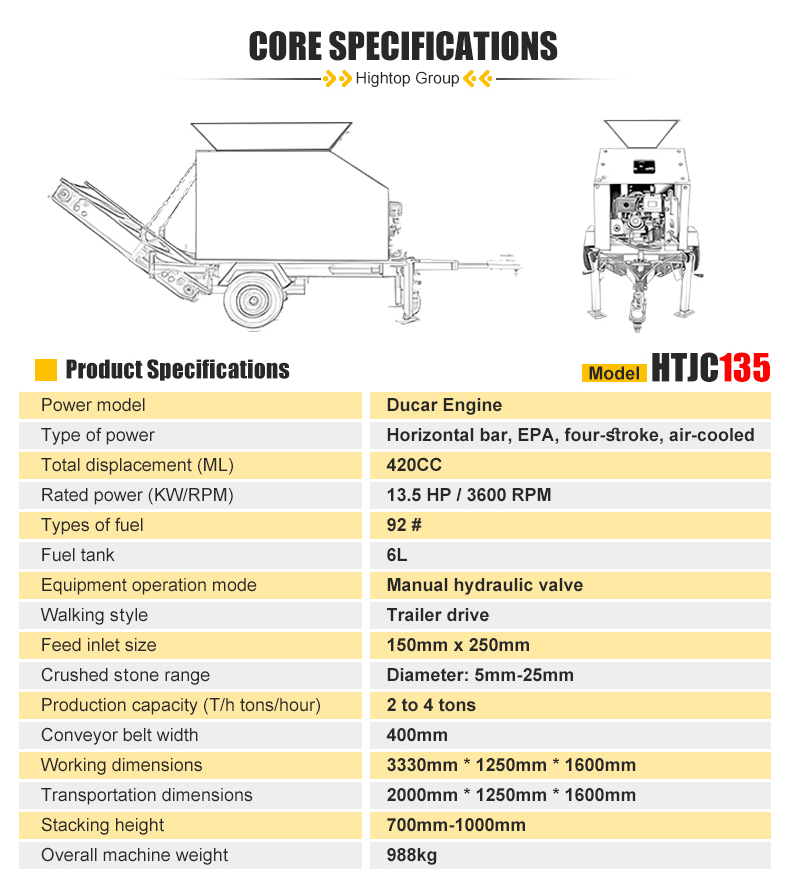

| Power model | Ducar Engine |
| Type of power | Horizontal bar, EPA, four-stroke, air-cooled |
| Total displacement (ML) | 420CC |
| Rated power (KW/RPM) | 13.5 HP/3600 RPM |
| Types of fuel | 92 # |
| Fuel tank | 6L |
| Equipment operation model | Manual hydraulic valve |

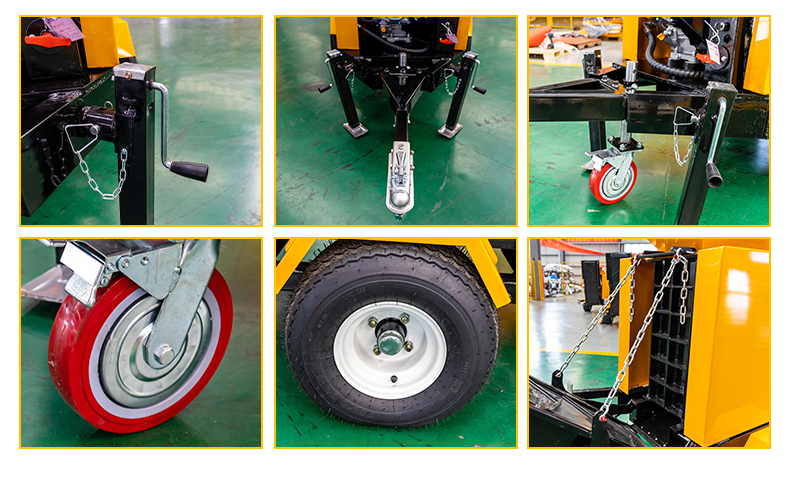

| Walking style | Trailer drive |
| Feed inlet size | 150mm x250mm |
| Crushed stone range | Diameter:5mm-25mm |
| Production capacity (T/h tons/hour) | 2 to 4 tons |
| Conveyor belt width | 400mm |
| Working dimensions | 3330mm*1250mm*1600mm |
| Transportation dimensions | 2000mm*1250mm*1600mm |
| Stacking height | 700mm-1000mm |
| Overall machine weight | 988kg |
