HTJC325 Jaw Crusher Instruction

The HTJC325 E-type crusher is used as the first process for crushing various ores, and can crush various ores with compressive strength not exceeding 240MPa to medium particle size in one go.

Application scope: sand and gravel yards, mining, coal mining, concrete mixing plants, power plant desulfurization, etc.

Crushed materials: bluestone, Yellowstone, iron ore, limestone, iron ore, construction waste, etc.

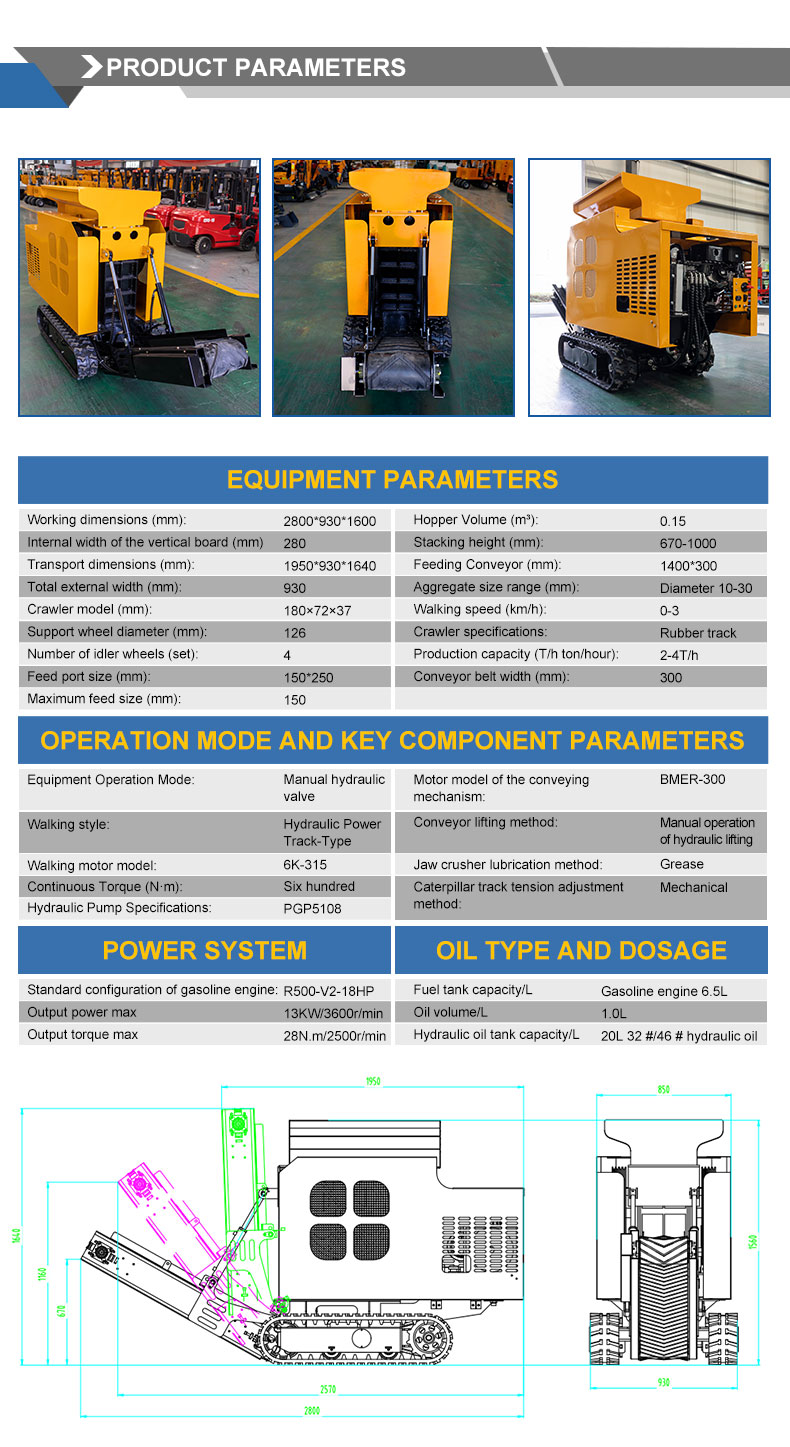

HTJC325 Jaw Crusher Parameter

Machine Parameter
Model	HTJC325
Working size	2800*930*1600mm
Inner width of vertical board	280mm
Transport size	1950*930*1640mm
Total outer width	930mm
Track model	180×72×37mm
Supporting wheel diameter	126mm
Number of supporting wheels	4groups
Inlet size	150*250mm
Maximum feed size	150mm
Storage bin volume	0.15m³
Stacking height	670-1000mm
Feeding conveyor	1400*300mm
Gravel range	Diameter 10-30mm
Walking speed	0-3km/h
Track specifications:	rubber track
Production capacity	2-4T/h tons/hour
Belt width	300mm
Operation form and main accessory parameters
Equipment operation mode:	Manual hydraulic valve
Walking method:	Hydraulic power track type
Model of walking motor:	6K-315
Continuous torque	600N.m
Hydraulic pump specifications:	PGP5108
Conveyor motor model:	BMER-300
Conveyor lifting method:	Manually operate hydraulic lifting
Lubrication method for jaw fracture mechanism:	grease
Adjustment method for track tension:	mechanical
Power system
Standard configuration of gasoline engine:	RATO R500-V2-18HP
Output power max	13KW/3600r/min
Output torque max	28N.m/2500r/min
Oil type and dosage
Fuel tank capacity	Gasoline 6.5L
Oil volume	1.0L
Hydraulic oil tank capacity	20L 32#/46# Hydraulic oil

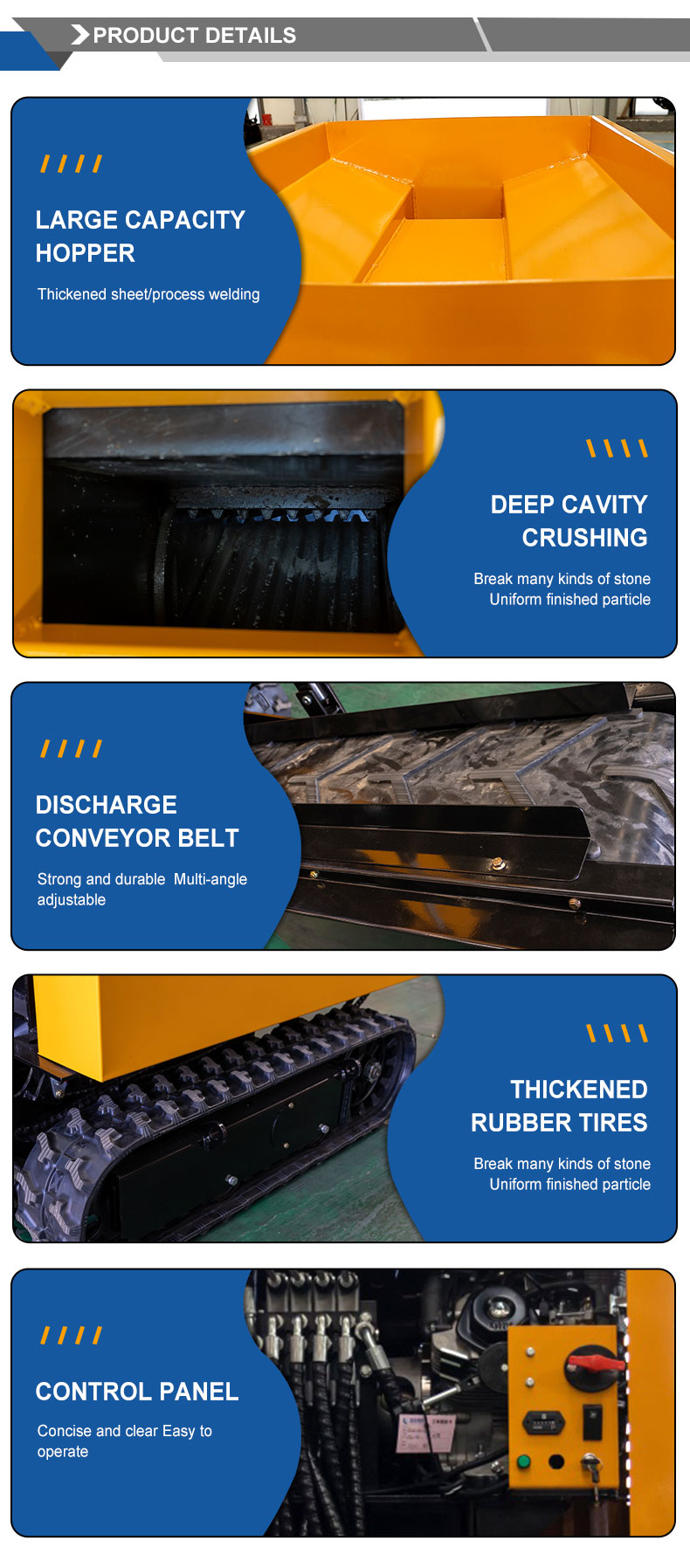

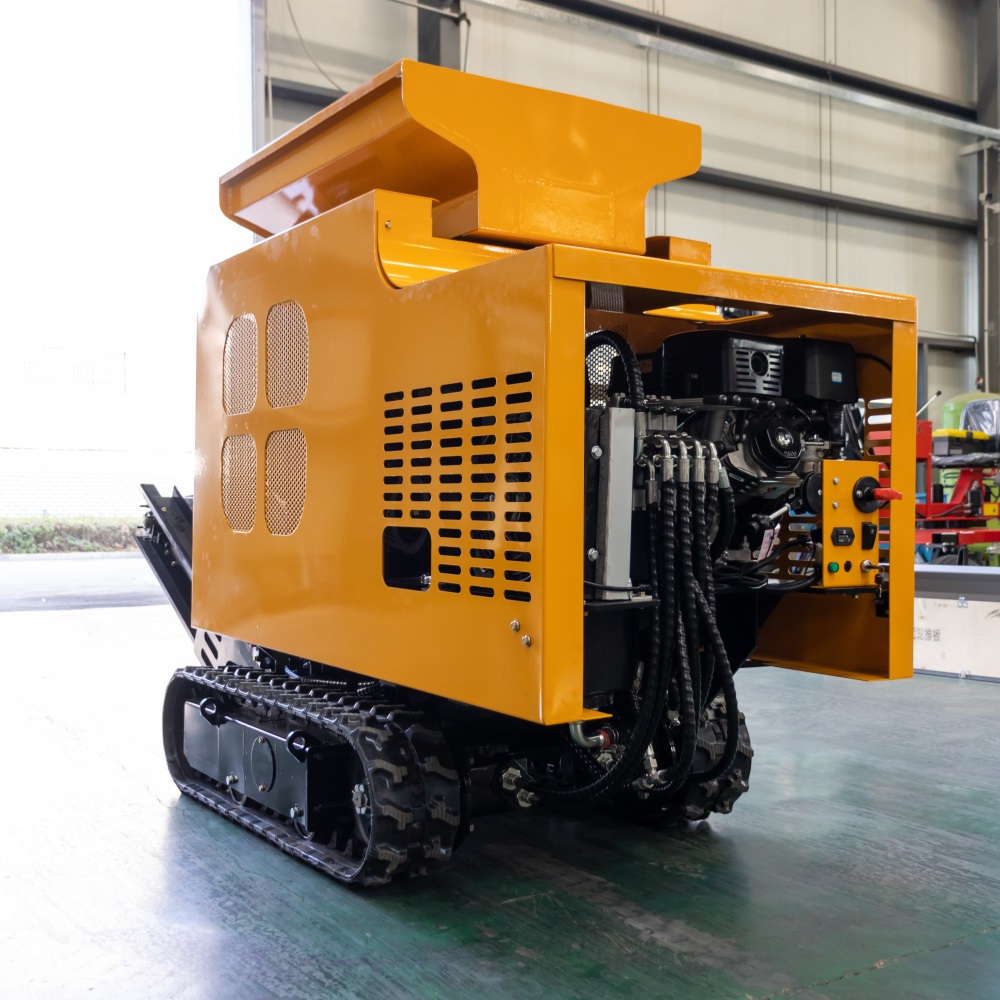

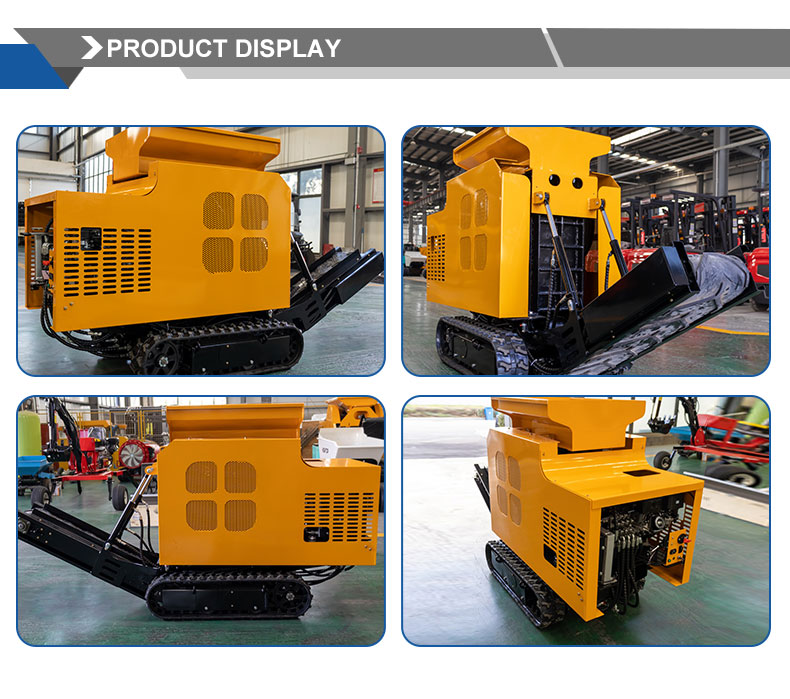

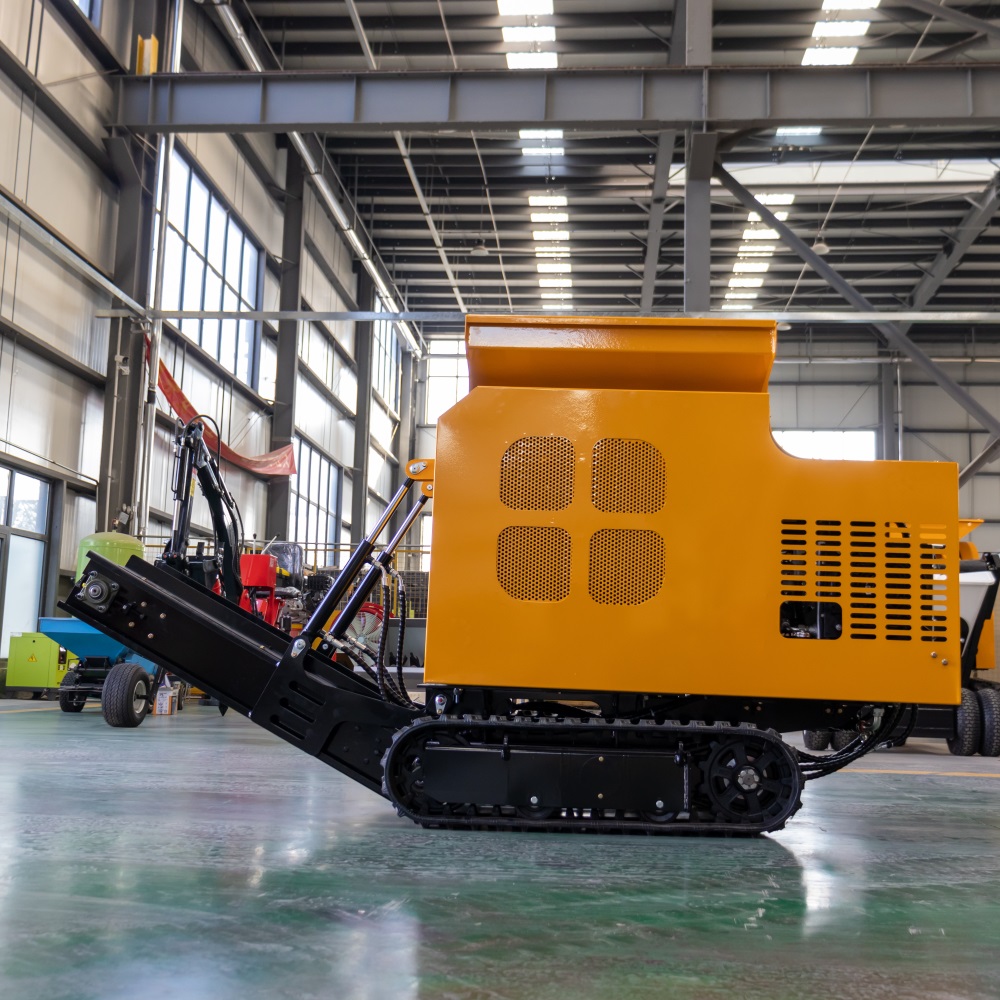

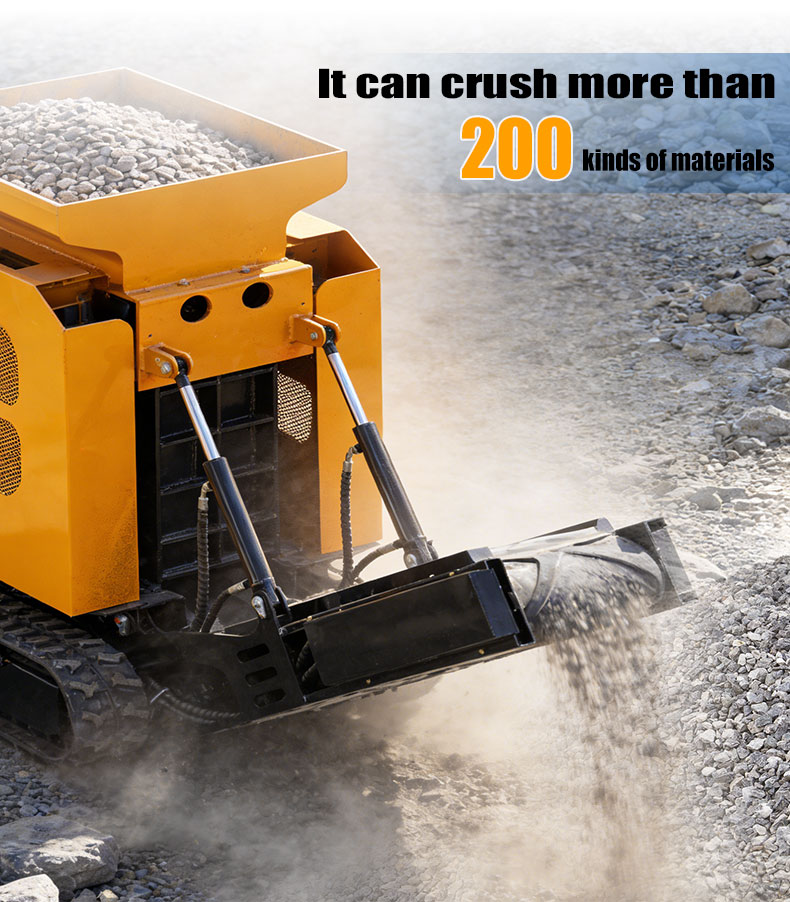

HTJC325 Jaw Crusher Images
